ESD Protection for USB Type-C Interfaces: Ensuring Reliability in a Connected World

USB Type-C has quickly become the go-to connector for modern electronic devices. Its innovative design, lightning-fast data transfer speeds, and impressive power delivery capabilities have made it indispensable in today’s technology landscape. However, with these advancements comes a critical challenge: protecting USB Type-C interfaces from Electrical Overstress (EOS) events such as Electrostatic Discharge (ESD).

In this blog, we’ll dive into the features that make USB Type-C revolutionary, the challenges of ESD and how the right protection strategies from Semtech can keep these tiny yet powerful connectors safe and reliable.

What Makes USB Type-C Special?

• Reversible Design: Forget about fiddling to plug it in correctly. USB Type-C is designed to be inserted in either orientation.
• Incredible Speed: With support for data transfer rates up to 40Gbps, USB Type-C ensures seamless connectivity for modern applications.
• Enhanced Power Delivery: It supports up to 100W of power, thanks to USB Power Delivery (USB PD), making it perfect for fast-charging devices like smartphones, laptops and drones.
• This versatility doesn’t end with power delivery and data transmission only. USB Type-C also supports alternate modes, enabling it to connect directly to HDMI and DisplayPort devices without additional adapters.

Inside the USB Type-C Connector

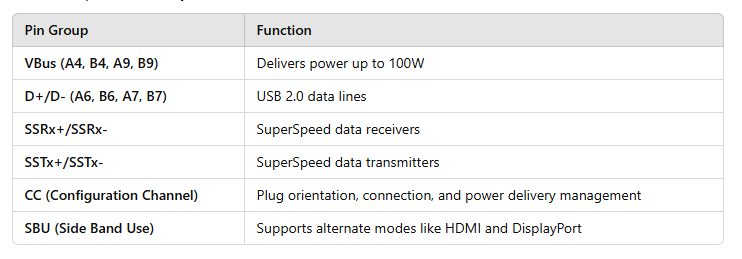

Behind the sleek design of USB Type-C lies a complex network of 24 pins. Each pin plays a specific role, from power delivery to data transmission:

These pins allow USB Type-C to offer high-speed data transfer, power delivery and versatile connectivity, all in a compact and reversible design.

Why ESD Protection is Essential

• Damage to sensitive USB transceivers.
• Malfunctions in connected devices.
• Short circuits, especially given the proximity of USB Type-C’s densely packed pins.


With fast rise-time spikes reaching tens of thousands of volts, implementing robust ESD protection is critical to ensure the long-term reliability of USB Type-C connectors.

How ESD Protection Works

Protecting USB Type-C connectors from ESD requires carefully selected Transient Voltage Suppression (TVS) diodes. These components divert harmful voltage spikes away from sensitive circuitry, ensuring the port remains functional and safe.

Key ESD Protection Areas

1. SBU and CC Pins: These pins handle configuration and alternate modes, sitting dangerously close to VBus pins, which can carry up to 20V. A short circuit here can be catastrophic.

Solution: Use TVS diodes like Semtech’s µClamp2411PW, which offer robust protection up to ±20kV (Air) and ±17kV (Contact) while maintaining an ultra-small form factor.

2. VBus Pins: VBus handles power delivery and can reach 20V during operation. Low capacitance isn’t critical here, but a high breakdown voltage is essential.

Solution: The TDS2221PW diode from Semtech’s SurgeSwitch® family protects with a breakdown voltage of 23V, maximum clamping voltage of 28V, and peak pulse current of 22A, ensuring VBus integrity even during surge events.

3. High-Speed Data Lines (Tx+/Tx- and Rx+/Rx-): These lines support 10Gbps or more data transfer and are highly sensitive to added capacitance.

Solution: Use ultra-low-capacitance diodes like Semtech’s RClamp03391PW, which offers high ESD withstand capability while preserving signal integrity.

4. USB 2.0 Lines (D+/D-): USB 2.0 data lines require low-voltage protection to maintain their functionality.

Solution: RClamp04041PW is an ideal choice, balancing low capacitance with effective ESD suppression.

Meeting the Challenges of USB Type-C ESD Protection

The dense pin layout of USB Type-C ports makes ESD protection particularly challenging. Close pin proximity increases the risk of short circuits, especially during connector insertion or if conductive debris is present. By implementing advanced TVS diodes, designers can effectively mitigate these risks without compromising the performance of USB Type-C interfaces.

Conclusion

USB Type-C is at the heart of modern connectivity, offering unmatched versatility, speed and power delivery. However, its small size and high pin density make it vulnerable to EOS events that can disrupt functionality or damage devices.

By incorporating robust TVS diodes like those from Semtech, manufacturers can protect USB Type-C interfaces and ensure they perform reliably, even under the harshest conditions. This not only safeguards devices but also delivers a seamless user experience for consumers worldwide.

For more information on ESD protection solutions, download the App Note.
